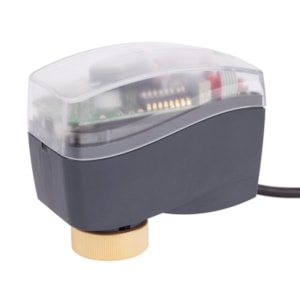

THIẾT BỊ TRUYỀN ĐỘNG DANFOSS AMV 110/120 NL 3-point, 24 s/mm, 5 mm, 5 m - C/N 082H8076

Gross weight

0.499 Kilogram

Net weight

0.48 Kilogram

Volume

2.446 Liter

EAN

5702421561454

Type

AMV 110/120 NL 3-point

Product group

Gear actuators

Approval standard

EC EN 60730

Cable length [m]

5 m

China RoHS compliance

Out of scope

Compatibility with AB-QM size

DN 10-32

Contains batteries

No

Control signal type

3-point

Description

AMV 110 NL, 24 V, 5 mm, actuator for three point control for AB-QM DN 10-32

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

IP protection class

IP42

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

51f88729-7b35-441f-a536-af09916549d7

SCIP dossier product name

AMI/AMV/AME 11-140 (1)

Spindle speed [s/mm]

24 s/mm

Stroke [mm]

5 mm

Supply voltage [V] AC

24 V
