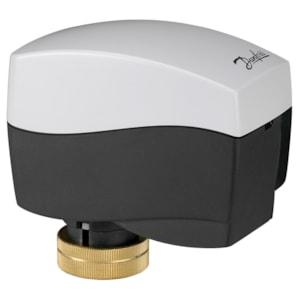

THIẾT BỊ TRUYỀN ĐỘNG DANFOSS AMI 140, 12 s/mm, 5.5 mm, 1.5 m- C/N 082H8048

Gross weight

0.35 Kilogram

Net weight

0.34 Kilogram

Volume

1.019 Liter

EAN

5702421552391

Type

AMI 140 On/Off actuator

Product group

Gear actuators

Approval standard

EC EN 60730

Cable length [m]

1.5 m

China RoHS compliance

Out of scope

Compatibility with AB-QM size

DN 10-32

Contains batteries

No

Control signal type

On/Off

Description

AMI 140, 24 V, 5,5 mm, actuator for two point control for AB-QM DN 10-32

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

IP protection class

IP42

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

ad40ff08-c742-4bef-873b-a24d6cee31e9

SCIP dossier product name

AMI/AMV/AME 11-140

Spindle speed [s/mm]

12 s/mm

Stroke [mm]

5.5 mm

Supply voltage [V] AC

24 V
