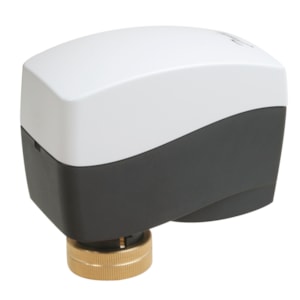

THIẾT BỊ TRUYỀN ĐỘNG DANFOSS AMV 130, 5.5 mm - C/N 082H8040

Gross weight

0.348 Kilogram

Net weight

0.348 Kilogram

Volume

0.941 Liter

EAN

5702421551912

Type

AMV 130

Product group

Gear actuators

Actuator speed [s/mm]

24 s/mm

Actuator type

Electrical

Ambient temperature [°C] [max]

55 °C

Ambient temperature [°C] [min]

0 °C

Application

fan coils

China RoHS compliance

Out of scope

Closing force [N]

200 N

Contains batteries

No

Control input signal Y [mA]

0 - 20 mA

Control input signal Y [V]

0 - 10 V

Control signal type

3-point

Description

AMV 130 H 24V 24s/mm 5,5mm 200N

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Grade of enclosure

IP42

Manual operation

Yes

Position feedback

no - potentiometer needed

Power consumption [W]

1 W

Protection Class of the Coating

II

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Safety function

No

SCIP dossier no.

5941c580-cf9b-456d-b3c6-52adde56771d

SCIP dossier product name

AMV (E) 130 - 150

Speed type

Standard

Spring down (return)

No

Spring up

No

Storage temperature [°C] [Max]

70 °C

Storage temperature [°C] [Min]

-40 °C

Stroke [mm]

5.5 mm

Supply voltage [V] AC

24 V

Turn time per 90° [s]

0 "
