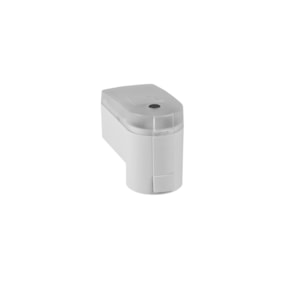

THIẾT BỊ TRUYỀN ĐỘNG DANFOSS AME 113, 15 s/mm, 8.5 mm - C/N 082H5007M

Gross weight

0.217 Kilogram

Net weight

0.184 Kilogram

Volume

0.58 Liter

EAN

5710104523637

Type

AME 113

Product group

Gear actuators

Cable included

Yes

China RoHS compliance

Out of scope

Compatibility with AB-QM size

AB-QM 4.0; DN 15-32

Contains batteries

No

Control characteristic

LOG

Control input signal Y [V]

0 - 10 V

Control signal type

Modulating

Description

AME 113 NL SD, 24 V, 8.5 mm, actuator with safety function, close, for modulating control for AB-QM DN 10-32

IP protection class

IP54

REACH Candidate List substances

No

Safety function

Yes

Spindle speed [s/mm]

15 s/mm

Stroke [mm]

8.5 mm

Supply voltage [V] AC

24 V

Supply voltage [V] DC

24 V
