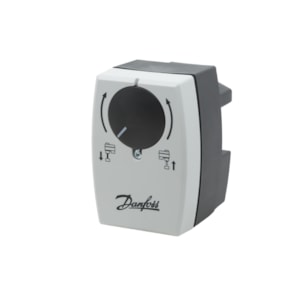

THIẾT BỊ TRUYỀN ĐỘNG DANFOSS AME 13 SD-1, 12 s/mm, 5.5 mm - C/N 082H5007

Mã sản phẩm: 082H5007

Thương hiệu: Danfoss

Giá thị trường: 1 đ

Tiết kiệm: 0 đ (0%)

Giá bán: 1 đ

Số lượng:

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

THIẾT BỊ TRUYỀN ĐỘNG DANFOSS AME 13 SD-1, 12 s/mm, 5.5 mm - C/N 082H5007

Product details

Actuator speed [s/mm]	12 s/mm
Actuator type	Electrical
Ambient temperature [°C] [max]	55 °C
Ambient temperature [°C] [min]	0 °C
Application	Heating and cooling
Approval standard	UL 60730
Cable included	No
China RoHS compliance	Out of scope
Closing force [N]	300 N
Compatibility with AB-QM size	½-1¼”
Contains batteries	No
Control characteristic	LIN; LOG
Control input signal Y [mA]	0(4) - 20 mA
Control input signal Y [V]	0(2) - 10 V
Control signal type	Modulating/3-point
Description	AME 13 SD-1, 24 V, 5 mm, UL certified actuator with Spring Down Safety function for modulating control for AB-QM DN 10-32
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(c)
Frequency [Hz]	50/60 Hz
Grade of enclosure	IP54
IP protection class	IP54
Operating torque [Nm]	300 N-m
Power consumption [W]	9 W
Protection Class of the Coating	II
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Safety function	Spring down
SCIP dossier no.	c590a8c0-b0bc-411b-b1a0-d05b04efee26
SCIP dossier product name	AME 13
Spindle speed [s/mm]	12 s/mm
Spring down (return)	Yes
Spring up	No
Stroke [mm]	5.5 mm
Supply voltage [V] AC	24 V
