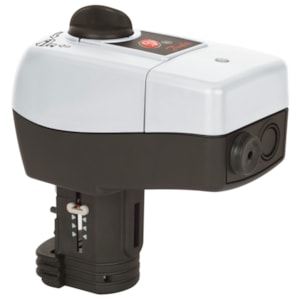

THIẾT BỊ TRUYỀN ĐỘNG DANFOSS AMV 435, Supply voltage [V] AC: 230, 20 mm - C/N 082H0163

Gross weight

0.706 Kilogram

Net weight

0.588 Kilogram

Volume

3.517 Liter

EAN

5710104007021

Type

AMV 435

Product group

Gear actuators

Actuator speed [s/mm]

8 s/mm

Actuator type

Electrical

Ambient temperature [°C] [max]

55 °C

Ambient temperature [°C] [min]

0 °C

Application

HVAC

China RoHS compliance

Out of scope

Closing force [N]

400 N

Contains batteries

No

Control signal type

3-point

Description

AMV 435 230V 7,5-15s/mm 20mm 400N

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Frequency [Hz]

50/60

Grade of enclosure

IP54

Manual operation

Yes

Position feedback

no

Power consumption [W]

2 W

Protection Class of the Coating

II

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Safety function

No

SCIP dossier no.

9d9ab398-66c2-4d1b-85a0-ec8a9efd3150

SCIP dossier product name

AMV(E) 335 - 445

Speed type

Standard

Spring down (return)

No

Spring up

No

Storage temperature [°C] [Max]

70 °C

Storage temperature [°C] [Min]

-40 °C

Stroke [mm]

20 mm

Supply voltage [V] AC

230 V
