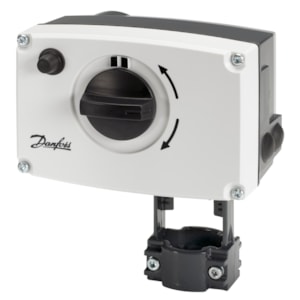

THIẾT BỊ TRUYỀN ĐỘNG DANFOSS AME 25, Supply voltage [V] AC: 24, 11 s/mm, 15 mm - C/N 082G3025

Mã sản phẩm: 082G3025

Thương hiệu: Danfoss

Giá thị trường: 1 đ

Tiết kiệm: 0 đ (0%)

Giá bán: 1 đ

Số lượng:

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

THIẾT BỊ TRUYỀN ĐỘNG DANFOSS AME 25, Supply voltage [V] AC: 24, 11 s/mm, 15 mm - C/N 082G3025

Product details

Actuator speed [s/mm]	11 s/mm
Actuator type	Electrical
Ambient temperature [°C] [max]	55 °C
Ambient temperature [°C] [min]	0 °C
Application	HVAC
China RoHS compliance	Out of scope
Closing force [N]	1000 N
Contains batteries	No
Control input signal Y [mA]	0(4) - 20 mA
Control input signal Y [mA], impedance [Ohm]	500 Ohm
Control input signal Y [V]	0(2) - 10 V
Control input signal Y [V], impedance [kOhm]	24 kOhm
Control signal type	Modulating/3-point
Description	AME 25 24V 11s/mm 15mm 1000N
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(c)
Grade of enclosure	IP54
Manual operation	Yes
Position feedback	yes
Power consumption [W]	4 W
Protection Class of the Coating	II
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Safety function	No
SCIP dossier no.	c5b6fd67-cf6c-493f-8f13-2d65fca1997f
SCIP dossier product name	AMV(E) 20 - 35
Speed type	Standard
Spindle speed [s/mm]	11 s/mm
Spring down (return)	No
Spring up	No
Storage temperature [°C] [Max]	70 °C
Storage temperature [°C] [Min]	-40 °C
Stroke [mm]	15 mm
Supply voltage [V] AC	24 V
Turn time per 90° [s]	0 "
