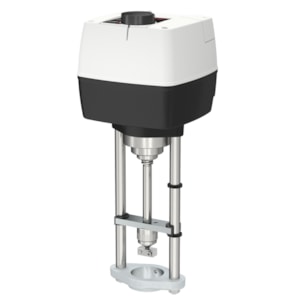

NovoCon XL, DN 200-250 - C/N 003Z8563

Gross weight

8.833 Kilogram

Net weight

6.3 Kilogram

Volume

26.565 Liter

EAN

5714279426243

Type

NovoCon XL

Product group

Gear actuators

Cable included

No

China RoHS compliance

Out of scope

Compatibility with AB-QM size

DN 200-250

Contains batteries

No

Control characteristic

Linear / Equal percentage

Control signal type

0-10 VDC, 0-5 VDC, 2-10 VDC, 5-10 VDC, 2-6 VDC, 6-10 VDC, 0-20 mA, 4-20 mA, BACnet MS/TP, Modbus RTU

Description

NovoCon XL, Digital actuator for AB-QM DN 200-250

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

IP protection class

IP54

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

7f4cdd74-39d1-48dc-a3f5-2b8f7218fe43

SCIP dossier product name

NovoCon XL

Stroke [mm]

80 mm

Supply voltage [V] AC

24 V
