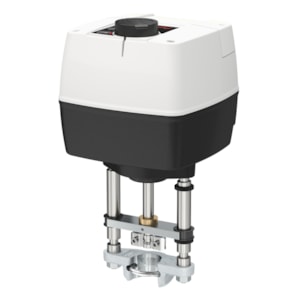

NovoCon L, DANFOSS DN 125-150, Spring down - C/N 003Z8562

Gross weight

9.6 Kilogram

Net weight

9.598 Kilogram

Volume

18.081 Liter

EAN

5714279426069

Type

NovoCon L

Product group

Gear actuators

Cable included

No

China RoHS compliance

Out of scope

Compatibility with AB-QM size

DN 125-150

Contains batteries

No

Control characteristic

Linear / Equal percentage

Control signal type

0-10 VDC, 0-5 VDC, 2-10 VDC, 5-10 VDC, 2-6 VDC, 6-10 VDC, 0-20 mA, 4-20 mA, BACnet MS/TP, Modbus RTU

Description

NovoCon L, Digital actuator for AB-QM DN 125-150, with spring down safety function

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

IP protection class

IP54

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Safety function

Spring down

Stroke [mm]

50 mm

Supply voltage [V] AC

24 V
