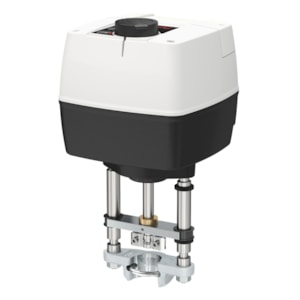

NovoCon L, DN 125-150 - C/N 003Z8560

Gross weight

6.241 Kilogram

Net weight

5.4 Kilogram

Volume

17.85 Liter

EAN

5714279426090

Type

NovoCon L

Product group

Gear actuators

Cable included

No

China RoHS compliance

Out of scope

Compatibility with AB-QM size

DN 125-150

Contains batteries

No

Control characteristic

Linear / Equal percentage

Control signal type

0-10 VDC, 0-5 VDC, 2-10 VDC, 5-10 VDC, 2-6 VDC, 6-10 VDC, 0-20 mA, 4-20 mA, BACnet MS/TP, Modbus RTU

Description

NovoCon L, Digital actuator for AB-QM DN 125-150

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

IP protection class

IP54

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

bad9cf13-e2d7-4b05-aa17-8711eb767175

SCIP dossier product name

NovoCon L

Stroke [mm]

50 mm

Supply voltage [V] AC

24 V
