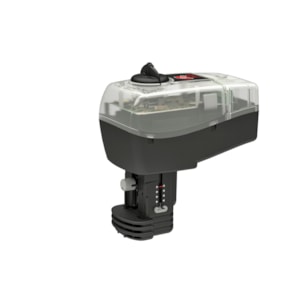

BỘ TRUYỀN ĐỘNG KỸ THUẬT SỐ DANFOSS NovoCon M, AB-QM DN 40-100 - C/N 003Z8540

Gross weight

0.7 Kilogram

Net weight

0.7 Kilogram

Volume

3.529 Liter

EAN

5714279038613

Type

NovoCon M

Product group

Gear actuators

Cable included

No

China RoHS compliance

Out of scope

Compatibility with AB-QM size

DN 40-100

Contains batteries

No

Control signal type

0-10 VDC, 0-5 VDC, 2-10 VDC, 5-10 VDC, 2-6 VDC, 6-10 VDC, 0-20 mA, 4-20 mA, BACnet MS/TP, Modbus RTU

Description

NovoCon M, Digital actuator for AB-QM DN 40-100

EPD available

Yes

EU RoHS compliance

Yes

EU RoHS exemption clause

No

IP protection class

IP 54 (IP 40 upside down)

REACH Candidate List substances

No

Stroke [mm]

20 mm

Supply voltage [V] AC

24 V
