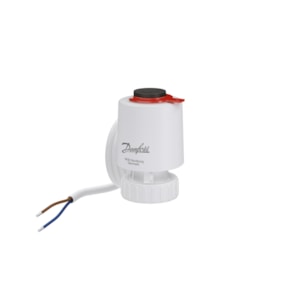

THIẾT BỊ TRUYỀN ĐỘNG NHIỆT DANFOSS TWA-Q 24V NC 1.2m cable - C/N 082F1602

Gross weight

0.176 Kilogram

Net weight

0.1 Kilogram

Volume

0.475 Liter

EAN

5702425243103

Type

TWA-Q

Product group

Thermal actuators

Approval standard

EC EN 60730

Cable length [m]

1.2 m

China RoHS compliance

Out of scope

Compatibility with AB-QM size

DN 10-32

Contains batteries

No

Control signal type

On/off and PWM

De-energized position

Normally closed

Description

TWA-Q, 24V, 5mm, Normally Closed thermal actuator, 1.2m cable

EU RoHS compliance

Yes with exemptions

IP protection class

IP54

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

06802140-664a-49c3-9dc7-3da2dd5cc68b

SCIP dossier product name

TWA-Q

Stroke [mm]

5 mm

Supply voltage [V] AC

24 V
