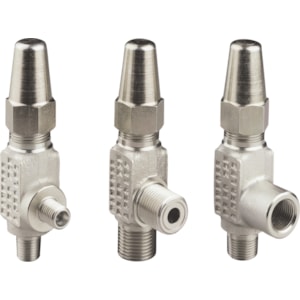

VAN CHẶN ĐỒNG HỒ DANFOSS SNV-SS - C/N 148B3750

Gross weight

0.616 Kilogram

Net weight

0.42 Kilogram

Volume

2.238 Liter

EAN

5702428179294

Type

SNV-SS

Product group

Shut-off and regulating valves

Product Name Description

Gauge valve

Approval

EAC; LLC CDC TYSK

China RoHS compliance

Out of scope

Colour Paint

Cr3 / TLP

Connection standard

ANSI/ASME B1.20.1

Contains batteries

No

Direction

Angleway

EU RoHS compliance

Out of scope

Fluid Group

1

Inlet connection size [in]

3/8

Inlet connection type

NPT

Inlet Internal/External

External

Max. Working Pressure [bar]

65 bar

Max. Working Pressure [psig]

943 psig

Outlet connection size [in]

3/8

Outlet connection type

NPT

Outlet Internal/External

Internal

Packing format

Multi pack

PED category

Art. 3, par. 3

Product description

Stop needle valve

Quantity per packing format

6 pc

REACH Candidate List substances

No

Refrigerants

R113
R114
R1150
R1233zd(E)
R1234yf
R1234ze(E)
R125
R1270
R1336mzz(Z)
R134a
R152a
R170
R22
R227ea
R23
R236fa
R245fa
R290
R32
R401A
R402A
R402B
R404A
R407A
R407B
R407C
R407F
R407H
R408A
R409A
R410A
R413A
R417A
R421A
R422A
R422B
R422D
R427A
R438A
R442A
R444B
R447A
R447B
R448A
R449A
R449B
R450A
R452A
R452B
R454A
R454B
R454C
R455A
R463A
R502
R503
R507A
R512A
R513A
R513B
R515A
R515B
R516A
R600
R600a
R717
R744
RE170
R508B

Temperature range [°C] [max]

200 °C

Temperature range [°C] [min]

-60 °C

Temperature range [°F] [max]

392 °F

Temperature range [°F] [min]

-76 °F

Valve version

Standard version
