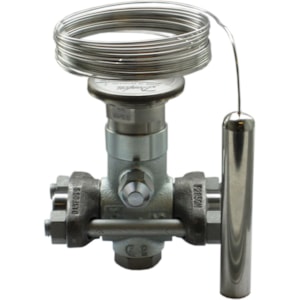

VAN TIẾT LƯU NHIỆT DANFOSS TEA 20-2, R717 - C/N 068G6001

Gross weight

2.442 Kilogram

Net weight

2.284 Kilogram

Volume

8.406 Liter

EAN

5702422015758

Type

TEA 20-2

Product group

Expansion valves

Product Name Description

Thermostatic expansion valve

Approval

EAC

Body material

Cast iron GGG40.3

Capillary tube length [in]

192 in

Capillary tube length [mm]

5000 mm

China RoHS compliance

Yes

Connection size [in]

1/2 in

Connection type

Weld flange

Contains batteries

No

Direction

Straightway

Equalization connection type

M

Equalization connector

Weld nipple 6.5 mm

EU RoHS compliance

Out of scope

Flow direction indicator

Embossed 1-way arrow

Fluid Group

1

Max. test pressure [bar]

28.5 bar

Max. test pressure [psig]

413 psig

Max. Working Pressure [bar]

19 bar

Max. Working Pressure [psig]

276 psig

Packing format

Single pack

Parts included

Weld nipple

PED category

Art. 4, par. 3

Pressure equalization

Externally equalized

Product accessories

Flanges

Product description

Thermostatic Expans. Valve

Quantity per packing format

1 pc

Rated cap. conditions [IMP]

Subcooling=7,2 °F; tcond=89,6 °F; tevap=59 °F

Rated cap. conditions [SI]

Subcooling=4K; tcond=32 °C; tevap=15 °C

Rated capacity R717 [kW]

7 kW

Rated capacity R717 [TR]

2 TR

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Refrigerants

R717

SCIP dossier no.

36edeb64-8ad3-4d4f-be91-c10b973ca10e

SCIP dossier product name

TEA TEAT

Serviceable

TXV spare parts

Superheat setting

Adjustable

Temperature range [°C] [max]

0 °C

Temperature range [°C] [min]

-50 °C

Temperature range [°F] [max]

32 °F

Temperature range [°F] [min]

-58 °F
