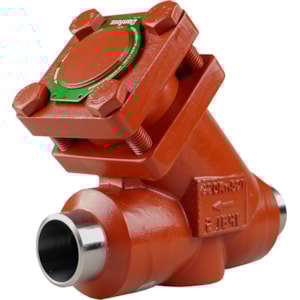

VAN MỘT CHIỀU DANFOSS CHV-X 25, Direction: Straightway, Connection standard: EN 10220 - C/N 148B6585

Gross weight

3.9 Kilogram

Net weight

3.4 Kilogram

Volume

5.372 Liter

EAN

5702428989206

Type

CHV-X 25

Product group

Check valves

Product Name Description

Check valve

Approval

UKCA

Brand

SVL Flexline

CE evaluated

Yes

China RoHS compliance

Out of scope

Colour Paint

Reddish brown

Connection material

Steel

Connection size [in]

1 in

Connection size [mm]

25 mm

Connection standard

EN 10220

Connection type

Butt weld

Contains batteries

No

Cv value [gal/min]

18.6 gal/min

Direction

Straightway

EU RoHS compliance

Out of scope

Flow direction indicator

Embossed 1-way arrow

Fluid Group

1; 2

Kv value [m³/h]

16 m³/h

Max. Working Pressure [bar]

52 bar

Max. Working Pressure [psig]

754 psig

MinODP [bar]

0.04 bar

MinODP [psi]

0.58 psi

Packing format

Single pack

Parts Program name

CHV-X

PED category

Art. 4, par. 3

Product accessories

SVL Flexline accessories

Product description

Check Valve

Quantity per packing format

1 pc

REACH Candidate List substances

No

Refrigerants

R134a
R22
R290
R401A
R402A
R404A
R407A
R407B
R407C
R407F
R409A
R410A
R421A
R502
R600
R600a
R717
R744
R507A
R1234yf
R1234ze(E)
R125
R152a
R170
R227ea
R236fa
R245fa
R32
R407H
R413A
R417A
R422A
R422B
R422D
R438A
R442A
R444B
R447A
R447B
R448A
R449A
R449B
R450A
R452A
R452B
R452C
R454A
R454B
R454C
R455A
R463A
R512A
R513A
R513B
R515A
R515B
R516A

Serviceable

SVL Flexline spare parts

Temperature range [°C] [max]

150 °C

Temperature range [°C] [min]

-60 °C

Temperature range [°F] [max]

302 °F

Temperature range [°F] [min]

-76 °F
