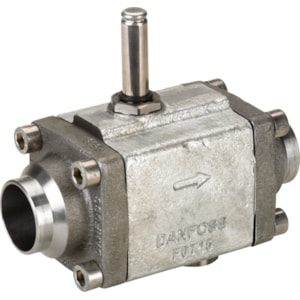

VAN ĐIỆN TỪ DANFOSS EVRA 40 - C/N 042H1132

Gross weight

4.674 Kilogram

Net weight

4.332 Kilogram

Volume

7.56 Liter

EAN

5702428517171

Type

EVRA 40

Product group

Solenoid valves

Product Name Description

Solenoid valve

Actuator system [mm]

13.5 mm

Ambient temperature

-40 - 80 °C

Ambient temperature range [°F] [max]

175 °F

Ambient temperature range [°F] [min]

-40 °F

Approval

C UL US LISTED; EAC; LLC CDC TYSK

Body material

Cast iron

China RoHS compliance

Out of scope

Coil

No

Connection material

Steel

Connection standard, inlet

EN 10220

Connection standard, outlet

EN 10220

Contains batteries

No

Cv value [gal/min]

28.9 gal/min

Direction

Straightway

EU RoHS compliance

Out of scope

Flow direction indicator

Embossed 1-way arrow

Function

NC

Inlet connection type

Butt weld

Inlet size [in]

2 in

Kv value [m³/h]

25 m³/h

Manual operation option

Yes

Max. Working Pressure [bar]

42 bar

Max. Working Pressure [psig]

610 psig

MaxOPD[bar] 10W AC

21 bar

MaxOPD[bar] 12W AC

25 bar

MaxOPD[bar] 20W DC

14 bar

MaxOPD[psi] 14W AC

300 psi

Medium temp. range note

Defrost max 130°C/265°F

Medium temperature range [°C] [max]

105 °C

Medium temperature range [°C] [min]

-40 °C

Medium temperature range [°F] [max]

221 °F

Medium temperature range [°F] [min]

-40 °F

MinODP [bar]

0.2 bar

MinODP [psi]

2.9 psi

Orifice size [mm]

25.4 mm

Outlet connection type

Butt weld

Outlet size [in]

2 in

Packing format

Single pack

Parts Program name

EVRA / EVRAT

Product accessories

Solenoid valve accessories

Quantity per packing format

1 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Refrigerants

R134a
R22
R401A
R402A
R404A
R407A
R407B
R407C
R407F
R409A
R410A
R421A
R502
R507A
R717

SCIP dossier no.

d38f86ba-12bb-4e70-8d9f-ec3fd58b7365

SCIP dossier product name

EVRA EVRAT

Serviceable

Solenoid valve spare parts

Type designation

Solenoid valve

UL evaluated

Yes

Valve operation

Servo-piston
