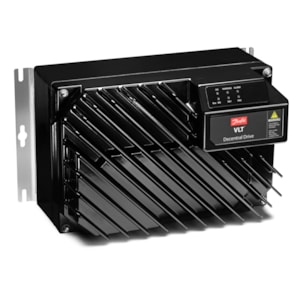

MÁY BIẾN TẦN DANFOSS FCD302 1.1KW - C/N 137X7865

Gross weight

10.1 Kilogram

Net weight

9.8 Kilogram

EAN

5715253866123

Product View (Switch)

GLBL

Global (Standard)

Product Group

FCD

VLT^® DecentralDrive FCD

VLT Series

302

302

Power Rating

P1K1

1.1 kW / 1.5 HP

Mains Voltage

T4

380-480VAC (Three phased)

Enclosure

B66

Standard Black IP66/NEMA4X

RFI Filter

H1

RFI Class A1/C2

Brake

S

Brake chop. + mech. brake

Hardware Configuration

1

Compl. small stand alone

Brackets

X

No brackets

Threads

M

Metric threads

Switch Option

X

No switch option

Display

C

With display connector

Sensor Plugs

X

No sensor plugs

Motor Plug

X

No motor plug

Mains Plug

X

No mains plug

Fieldbus Plug

P

M12 Profibus

Reserved

X

Reserved

A Option

AR

MCA117 PB FCD300

B Option

BX

No B option

Reserved for SW

XXXXX

Reserved for SW

D Option

D0

24VDC back-up input

FCD302 Frame Size

MF1

(MF1) MF1

Typecode Part 1

FCD302P1K1T4B66H1S1XMXCXXXPX

Typecode Part 2

ARBXXXXXXD0

Product Catalog

NO_VIEW

NO VIEW

ECCN EU

Y901

Y901

ECCN US

3A999.a

3A999.a

Calculated Gross Weight [kg]

10.1

Calculated Net Weight [kg]

9.8

Vendor

ERR01

Cannot Determine Vendor

Recommended Factory

ERR01

Cannot Determine Vendor

Modelcode01

FCD302P1K1T4B66H1S1XMXCXXXPX

Modelcode02

ARBXXXXXXD0

Recommended Plant

ERR01

ERR01
