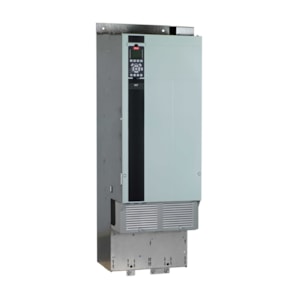

MÁY BIẾN TẦN DANFOSS FC302 160KW - C/N 134F4153

Gross weight

115 Kilogram

Net weight

100 Kilogram

EAN

5710107440030

Product View (Switch)

GLBL

Global (Standard)

Product Group

FC-

VLT^® AutomationDrive FC-

Series

302

302

Power Rating

N160

(N160) 160 KW / 250 HP

Phase

T

Three phase

Mains Voltage

5

380 - 500 VAC

Enclosure

E20

(E20) IP20 / Chassis

RFI Filter

H2

RFI Filter

Brake - Safe Stop

B

Brake chopper

LCP

G

Graphical Loc. Cont. Panel

Coating PCB

C

Coated PCB

Mains Option

X

No Mains Option

Adaptation A

X

Standard Cable Entries

Adaptation B

X

No adaptation

Software Release

SXXX

Latest release std. SW.

Software Language Pack

X

Standard Language Pack

A Option

AX

No A Option

B Option

BX

No B Option

C0 Option MCO

CX

No C0 option

C1 Option

X

No C1 option

C Option Software

XX

No software option

D Option

DX

No D option

Frame Size

D4H

D4H

Typecode Part 1

FC-302N160T5E20H2BGC

Typecode Part 2

XXXSXXXXAXBXCXXXXDX

Product Catalog

NO_VIEW

NO VIEW

Power 150% (HO) [KW]

160

160

Power 110% (NO) [KW]

200

200

Height [mm]

1122,0

1122,0

Height w/ Regen/Loadshare [mm]

1268,0

1268,0

Width w/ no C options [mm]

350,0

350,0

Depth [mm]

375,0

375,0

Depth with Option A/B [mm]

375,0

375,0

kVA

218

218

Continuous Current (NO) [A]

395

395

Intermittent Current (NO) [A]

435

435

Continuous Current (NO) [A]

361

361

Intermittent Current (NO) [A]

397

397

Continuous Current (HO) [A]

315

315

Intermittent Current (HO) [A]

472

472

Continuous Current (HO) [A]

302

302

Intermittent Current (HO) [A]

453

453

Calculated Gross Weight [kg]

125.3

Calculated Net Weight [kg]

125

ECCN EU

Y901

Y901

ECCN US

3A999.a

3A999.a

Plant from Orderline

B901

B901

Vendor

ERR01

Cannot Determine Vendor

Recommended Factory

ERR01

Cannot Determine Vendor

Modelcode01

FC-302N160T5E20H2BGC

Modelcode02

XXXSXXXXAXBXCXXXXDX
