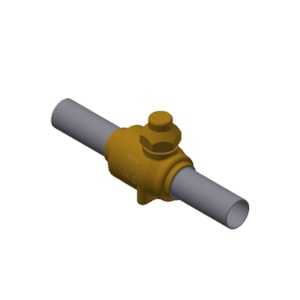

VAN CHẶN DANFOSS GBCH 28s - C/N 009L7406

Gross weight

1.102 Kilogram

Net weight

0.93 Kilogram

EAN

5702428515412

Type

GBCH 28s

Product group

Shut-off and regulating valves

Product Name Description

Shut-off ball valve

Access port

No

Approval

CE; UKCA

Body material

Brass

CE evaluated

Yes

China RoHS compliance

Yes exceed limitations

Connection material

Stainless steel

Contain batteries

No

Cv value [gal/min]

111.81 gal/min

Direction

Straightway

Equipment

Cap w. wire seal

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Flow direction

Bi-flow

Flow direction indicator

Embossed 2-way arrow

Fluid Group

2

Ignition source assessment

Yes

Inlet connection type

Butt weld

Inlet size [mm]

28 mm

Kv value [m³/h]

96.72 m³/h

Max. Working Pressure [bar]

90 bar

Max. Working Pressure [psig]

1305 psig

Outlet connection type

Butt weld

Outlet size [mm]

28 mm

Packing format

Multi pack

Panel mounting option

M4 × 0.7 (2 PC)

PED category

Art. 4, par. 3

Product accessories

BM/GBC valve accessories

Quantity per packing format

5 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Refrigerants

R744

SCIP dossier no.

cac227b8-1cb2-4bdf-b22c-0bd4e896d5e9

SCIP dossier product name

CO2 GBC 90 bar V2 without AP

Serviceable

BM/GBC valve spare parts

Temperature range [°C] [max]

100 °C

Temperature range [°C] [min]

-40 °C

Temperature range [°F] [max]

212 °F

Temperature range [°F] [min]

-40 °F
