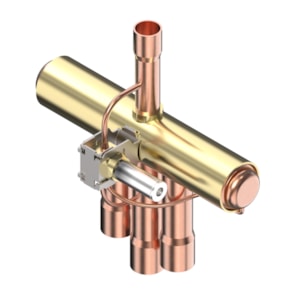

VAN ĐẢO CHIỀU 4 CHIỀU DANFOSS - C/N 061L1352

Gross weight

0.756 Kilogram

Net weight

0.672 Kilogram

Volume

2.506 Liter

EAN

5702424157159

Ambient temperature range [°C] [max]

55 °C

Ambient temperature range [°C] [min]

-30 °C

Ambient temperature range [°F] [max]

131 °F

Ambient temperature range [°F] [min]

-22 °F

Approval

CE; VDE

Cap condition 1 [°C]

0°C sub-cooling; 38°C condensing; 5°C evaporating; 5°C super-heat

Cap condition 2 [°C]

54,4 °C condensing; 5°C sub-cooling; 5°C super-heat; 7,2°C evaporating

Cap R407C@Δp:0.1bar(cond1)[kW]

16.1 kW

Cap R407C@Δp:0.1bar(cond2)[kW]

13.75 kW

Cap R407C@Δp:0.2bar(cond1)[kW]

22.66 kW

Cap R407C@Δp:0.2bar(cond2)[kW]

19.37 kW

Cap R410A@Δp:0.1bar(cond1)[kW]

20.81 kW

Cap R410A@Δp:0.1bar(cond2)[kW]

18.03 kW

Cap R410A@Δp:0.2bar(cond1)[kW]

29.35 kW

Cap R410A@Δp:0.2bar(cond2)[kW]

25.43 kW

CE evaluated

Yes

China RoHS compliance

Out of scope

Coil

No

Contain batteries

No

Design config. Style

F

Discharge conn size [in]

1/2

Discharge conn size [mm]

12.8 mm

Discharge conn type

FEMALE

EU RoHS compliance

Out of scope

Evap/cond conn size [in]

3/4

Evap/cond conn size [mm]

19,15

Max. Leakage [cm³/min]

4000 cm³/min

Max. Working Pressure [bar]

45 bar

MaxOPD [bar]

31 bar

MaxOPD [psig]

450 psig

Medium temperature range [°C] [max]

130 °C

Medium temperature range [°C] [min]

-30 °C

Medium temperature range [°F] [max]

266 °F

Medium temperature range [°F] [min]

-22 °F

MinODP [bar]

3 bar

MinODP [psi]

44 psi

Packing format

Industrial pack

Process connection material

Copper

Product group

4-way reversing valves

Product Name Description

4-way reversing valve

Quantity per packing format

24 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Refrigerants

R134a
R22
R290
R32
R404A
R407A
R407C
R410A
R448A
R449A
R452B
R454B
R454C
R1234yf
R1234ze
R452A
R513A

SCIP dossier no.

56201691-6440-4ffa-b910-016806dbd912

SCIP dossier product name

STF 4-WAY REV. VALVE H0429 I/24

Shock resistance standard

JIS C 60068-2-27

Suction conn size [in]

3/4

Suction conn size [mm]

19.15 mm

Type

STF

Type designation

STF-H0429

Vibration stability [m/s²]

19.6 m/s²

Vibration test standard

JIS C 60068-2-6
