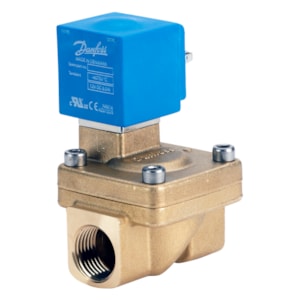

VAN ĐIỆN TỪ DANFOSS EV220W, Function: NC, G, 1/2, 4.000 m³/h, EPDM - C/N 042U471419

Gross weight

0.692 Kilogram

Net weight

0.66 Kilogram

Volume

3.684 Liter

EAN

5702428978149

Actuator

W

Actuator size

9 mm clip-on W

Actuator size [in]

0.35 in

Actuator system [mm]

9 mm

Ambient temperature max. [°C]

50 °C

Ambient temperature max. [°F]

122 °F

Application

Open

Approval

CE; UKCA; WRAS

Body material

Brass

CE evaluated

Yes

China RoHS compliance

Out of scope

Coil option

Clip-on

Coil type

AS

Connection Internal/External

Internal

Connection material

Brass

Connection size [in]

1/2

Connection standard

ISO 228-1

Connection type

G

Contain batteries

No

Cv value [gal/min]

4.6 gal/min

Differential pressure [bar] [max]

10 bar

Differential pressure [bar] [min]

0.3 bar

Differential pressure [psi] [max]

145 psi

Differential pressure [psi] [min]

4.35 psi

EEE category

5 small equipment (any external dimension < 50 cm)

Electrical connection

Spade DIN 43650-A

Enclosure rating IP

IP65

Est. time to close, water [ms]

400 ms

Est. time to open, water [ms]

100 ms

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Flow direction

Single-flow

Flow direction indicator

Embossed 1-way arrow

Fluid Group

1

Frequency [Hz]

50/60 Hz

Function

NC

In scope of WEEE

Yes

Kv value [m³/h]

4 m³/h

Max media viscosity [cSt]

50 cSt

Max. test pressure [bar]

15 bar

Max. test pressure [psig]

217.5 psig

Max. Working Pressure [bar]

10 bar

Max. Working Pressure [psig]

145 psig

Media recommendations

Water & Brine

Medium temperature range [°C] [max]

100 °C

Medium temperature range [°C] [min]

-30 °C

Medium temperature range [°F] [max]

212 °F

Medium temperature range [°F] [min]

-22 °F

Number of ways

2/2

Operation

Servo-operated (diaphragm)

Orifice size [mm]

14 mm

Orifice size fraction [in]

4/16 in

Packing format

Multi pack

Parts Program name

EV220W

Power consumption [W] 50Hz

9.5 W

Power consumption [W] 60Hz

7 W

Product accessories

Solenoid coil accessories; Solenoid valve accessories

Product group

Solenoid valves

Product Name Description

Solenoid valve

Quantity per packing format

12 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

251bcd5a-3b75-4c2a-9b66-d0bbba166a77

SCIP dossier product name

EV220W- solenoid valve

Seal Material

EPDM

Serviceable

No

Specification key

EV220W 14 G 12E NC000 AS024CS

Supply voltage 50Hz Max [V]

24 V

Supply voltage 60Hz Max [V]

24 V

Supply voltage [V] AC

24 V

Type

EV220W

Type designation

EV220W 14

UK RoHS compliance

Out of scope
