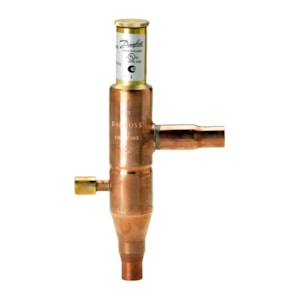

VAN ĐIỀU ÁP DANFOSS KVR 12 - C/N 034L0096

Gross weight

0.392 Kilogram

Net weight

0.34 Kilogram

Volume

1.18 Liter

EAN

5702428411592

Approval

C UL US LISTED; EAC; LLC CDC TYSK; RoHS; RoHS China

Approval file name

REFRIGERANT VALVE 53R0

China RoHS compliance

Yes

Contain batteries

No

Equipment

Schrader valve access port

EU RoHS compliance

Yes

EU RoHS exemption clause

No

Factory setting [bar]

10 bar

Factory setting [psig]

145 psig

Flow direction indicator

Engraved 1-way arrow

Inlet connection type

Solder, ODF

Inlet size [mm]

12 mm

Lubricants compatibility

Oilfree applications

Max. test pressure [bar]

31 bar

Max. test pressure [psig]

450 psig

Max. Working Pressure [bar]

28 bar

Max. Working Pressure [psig]

406 psig

Medium temperature range [°C] [max]

130 °C

Medium temperature range [°C] [min]

-45 °C

Medium temperature range [°F] [max]

266 °F

Medium temperature range [°F] [min]

-49 °F

Oil free refrigerants

R1234ze(E); R513A

Other RoHS documentation

EAEU RoHS

Outlet connection type

Solder, ODF

Outlet size [mm]

12 mm

P band max. [bar]

6.2 bar

P band max. [psi]

90 psi

Packing format

Multi pack

Product accessories

No

Product group

Press. and temp. regul. valves

Product Name Description

Condensing pressure regulator

Quantity per packing format

12 pc

Rated cap. conditions [IMP]

Delta p hotgas=6 psi ; Delta p liquid=3 psi ; tcond=110 °F ; tevap=40 °F

Rated cap. conditions [SI]

Delta p hotgas=0.4 bar; Delta p liquid=0.2 bar; Offset=3 bar; tcond=30 °C; tevap=-10 °C

Rated cap. R134a, Hot gas [kW]

11.6 kW

Rated cap. R134a, Hot gas [TR]

3.03 TR

Rated cap. R22, Hot gas [kW]

13.2 kW

Rated cap. R22, Hot gas [TR]

4.13 TR

Rated cap. R404A/R507A [kW]

36.6 kW

Rated cap. R404A/R507A [TR]

8.2 TR

Rated cap. R407C, Hot gas [kW]

14.3 kW

Rated cap. R407C, Hot gas [TR]

4.5 TR

Rated cap.R404A/R507,Hot gas[k

12 kW

Rated cap.R404A/R507,Hot gas[T

3.27 TR

Rated capacity R134a [kW]

47.3 kW

Rated capacity R134a [TR]

11.8 TR

Rated capacity R22 [kW]

50.4 kW

Rated capacity R22 [TR]

12.7 TR

Rated capacity R407C [kW]

54.4 kW

Rated capacity R407C [TR]

13.8 TR

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Refrigerants

R1234yf
R1234ze(E)
R1270
R134a
R22
R290
R404A
R407A
R407C
R407F
R407H
R422B
R422D
R448A
R449A
R449B
R450A
R452A
R454A
R454C
R455A
R507A
R513A
R515B
R516A
R600
R600a

Regulation range [bar] [max]

17.5 bar

Regulation range [bar] [min]

5 bar

Regulation range [psig] Pe [max]

254 psig

Regulation range [psig] Pe [min]

73 psig

SCIP dossier no.

842c526f-b213-4baa-869c-a91bb999a318

Serviceable

KV valves spare parts

Type

KVR 12

UK RoHS compliance

Out of scope

UL approved refrigerants

R134a
R22
R404A
R407A
R407C
R407F
R407H
R422B
R422D
R448A
R449A
R449B
R450A
R452A
R507A
R513A
R515B
R516A

UL evaluated

Yes
