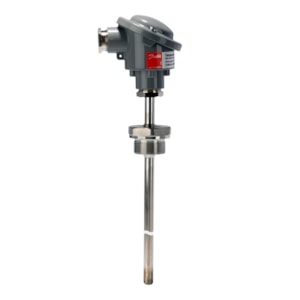

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 5252, 50 mm, G,1/2 - C/N 084Z6263

Gross weight

0.405 Kilogram

Net weight

0.395 Kilogram

Volume

1.103 Liter

EAN

5702423136667

Ambient temperature max. [°C]

90 °C

Ambient temperature max. [°F]

194 °F

CE evaluated

Yes

China RoHS compliance

Yes exceed limitations

Connection material

Stainless steel

Connection standard

ISO 228

Connection type

G

EEE category

5 small equipment (any external dimension 50 cm)

Electrical connection

Type B

Electrical connection size

Pg 16

Enclosure rating IP

IP65

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(a); 6(b); 6(c); 7(a); 7(c)-I

Extension length [in]

1.97 in

Extension length [mm]

50 mm

In scope of WEEE

Yes

In scope of WEEE and contain batteries

No

Insertion length [in]

2 in

Insertion length [mm]

50 mm

Insertion type

Fixed

Number of terminals [pcs]

3 pc

Output signal

Ohm

Packing format

Multi pack

Process connection Male/Female

Male

Process connection material

Stainless steel

Process connection size

1/2

Process connection standard

ISO 228-1-A

Process connection type

G

Product group

Sensors

Product Name Description

Temperature sensor

Protection tube diameter [in]

0.394 in

Protection tube diameter [mm]

10 mm

Protection tube material

AISI 316 Ti

Quantity per packing format

8 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

ab5a5d0b-78ac-4b3e-a6f6-bc20d26a29a6

Sensor elem. resistance [Ohm]

100

Sensor element [pc]

2 pc

Sensor element standard

EN 60751

Sensor element tolerance

Class B

Sensor element type

Pt

Sensor Insert

Exchangeable

Temperature range [°C] [max]

200 °C

Temperature range [°C] [min]

-50 °C

Temperature range [°F] [max]

392 °F

Temperature range [°F] [min]

-58 °F

Type

MBT 5252

Type designation

MBT 5252-0111-0050-0200-0000

UK RoHS compliance

Yes with exemptions

UK RoHS exemption clause

12; 15; 18; 19; 21

Wires [pcs]

2 pc
