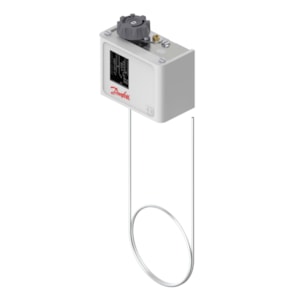

CÔNG TẮC NHIỆT ĐỘ DANFOSS KP61 - C/N060L124866

Gross weight

0.622 Kilogram

Net weight

0.529 Kilogram

Volume

1.463 Liter

EAN

5702428251587

Amb. Temp. Note

80 °C/176 °F for max 120 min

Ambient temperature range [°C] [max]

65 °C

Ambient temperature range [°C] [min]

-40 °C

Ambient temperature range [°F] [max]

150 °F

Ambient temperature range [°F] [min]

-40 °F

Approval

BV ; CCC ; CE ; CMIM ; DNV ; EAC ; GL ; LLC CDC EURO-TYSK ; LR ; LVD ; PZH ; RINA ; RMRS ; RoHS China ; UKCA ; c UL us UL873, CS C22.2

Cap. tube length fraction [in]

157 1/2 in

Capillary tube length [mm]

4000 mm

CE evaluated

Yes

Charge type

Vapour

China RoHS compliance

Yes

Contact function

SPDT

Contact rating

AC15=10 A, 400 V; AC1=16 A, 400 V; AC3=16 A, 400 V; DC13=12 W, 220 V; LR=112 A, 400 V

Diff. @ Max. range setting [K] [max]

7 K

Diff. @ Max. range setting [K] [min]

1.5 K

Diff. @ Max. range setting[°C] [max]

7 °C

Diff. @ Max. range setting[°C] [min]

1.5 °C

Diff. @ Min. range setting [K] [max]

23 K

Diff. @ Min. range setting [K] [min]

5.5 K

Diff. @ Min. range setting[°C] [max]

23 °C

Diff. @ Min. range setting[°C] [min]

5.5 °C

Differential type

Adjustable

Electrical connection

Rubber cable gland

Electrical connection size

6-14 mm

Electrical spec. standard

EN 60947-5

EN 60947 electrical properties

Insulation: 400V; Pollution degree: 3; Rated impulse voltage: 4 kV; Short circuit prot, fuse: 16A

EN 60947 wiring properties

Flex, ferrules: 0.5-1.5 mm2; Flex, no ferrules: 0.7-2.5 mm2; Solid/stranded: 0.75-2.5 mm2

Enclosure rating IP

IP30

Enclosure rating Nema (~)

1

EU RoHS compliance

Yes

EU RoHS exemption clause

No

In scope of WEEE and contain batteries

No

Max. sensor temperature [°C]

120 °C

Max. sensor temperature [°F]

248 °F

Packing format

Multi pack

Parts included

Clamps; Wall bracket

Product accessories

Switches accessories

Product description

Thermostat

Product group

Switches and thermostats

Product Name Description

Thermostat

Quantity per packing format

14 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Reset function

Auto

SCIP dossier no.

be15a44e-80b1-41bd-9578-c8ff1cd7b9f3

Sensor size (Ø x L) [in]

1/10 x 19 5/8 in

Sensor size (Ø x L) [mm]

2.5 x 500 mm

Sensor type

Capillary tube sensor

Serviceable

No

Temperature range [°C] [max]

15 °C

Temperature range [°C] [min]

-30 °C

Temperature range [°F] [max]

59 °F

Temperature range [°F] [min]

-22 °F

Type

KP61

UK RoHS compliance

Yes

UL approval file name

E31024

UL evaluated

Yes
