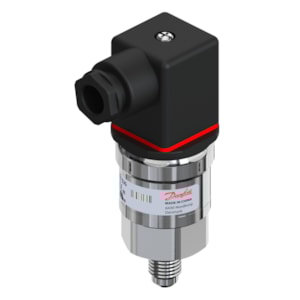

CẢM BIẾN ÁP SUẤT DANFOSS AKS 3000, -1- 6bar, -14.5- 87psi - C/N 060G1321

Gross weight

0.172 Kilogram

Net weight

0.152 Kilogram

Volume

0.408 Liter

EAN

5702423103379

+ supply

Pin 1

- common

Pin 2

Accuracy, max. [±FS%]

2 %

Accuracy, typical [±FS%]

1 %

Adj. zero point and span

No

Ambient temperature range [°C] [max]

85 °C

Ambient temperature range [°C] [min]

-40 °C

Ambient temperature range [°F] [max]

185 °F

Ambient temperature range [°F] [min]

-40 °F

Approval

ATEX; GOST POCC; cUR

Approval comments

ATEX Ex ec IIA T4 Gc

Approval standard

6967179; E227388; E31024

China RoHS compliance

Out of scope

Compensated temp. range [°C] [max]

40 °C

Compensated temp. range [°C] [min]

-30 °C

Compensated temp. range [°F] [max]

104 °F

Compensated temp. range [°F] [min]

-22 °F

EEE category

5 small equipment (any external dimension 50 cm)

Electrical conn. Male/Female

Male and Female

Electrical connection

Angular connector

Electrical connection size

Pg 9

Electrical connection standard

EN 175301-803-A

Enclosure rating IP

IP65

EU RoHS compliance

Out of scope

Flush diaphragm

No

High Clipping Level

22.4

In scope of WEEE

Yes

In scope of WEEE and contain batteries

No

International Article Number

5702423103379

Intrinsically safe

No

Low Clipping level

3.6

Medium temperature range [°C] [max]

85 °C

Medium temperature range [°C] [min]

-40 °C

Medium temperature range [°F] [max]

185 °F

Medium temperature range [°F] [min]

-40 °F

Non-linearity BFSL [±FS%]

0.5 %

Output signal

Current

Output signal [mA] [max]

20 mA

Output signal [mA] [min]

4 mA

Overload pressure max. [bar]

33 bar

Packing format

Multi pack

Pressure connection notes

Flare 1/4 in

Pressure connection size

7/16-20

Pressure connection standard

ASME B1.1

Pressure connection type

UNF

Pressure Male/Female

Male

Pressure range [bar] [max]

6 bar

Pressure range [bar] [min]

-1 bar

Pressure range [psi] [max]

87 psi

Pressure range [psi] [min]

-14.5 psi

Pressure reference

Sealed gauge

Product group

Sensors

Product Name Description

Pressure transmitter

Pulse-snubber

No

Quantity per packing format

14 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Response time max. [ms]

4 ms

SCIP dossier no.

442fa760-b631-4ddb-a979-55b604269353

SCIP dossier product name

Sensor AKS 3000

Specification key

AKS 3000-D531-A1BC08-0

Supply voltage [V] DC [max]

32 V

Supply voltage [V] DC [max]

32 V

Supply voltage [V] DC [min]

9 V

Supply voltage [V] DC [min]

9 V

Type

AKS 3000

UK RoHS compliance

Out of scope
