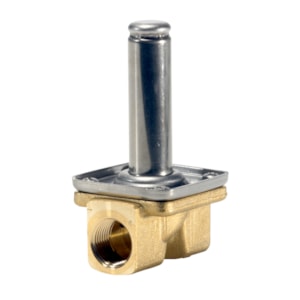

VAN ĐIỆN TỪ DANFOSS EV220B, Function: NC, G, 3/8, 0.700 m³/h, EPDM - C/N 032U5807

Gross weight

0.24 Kilogram

Net weight

0.217 Kilogram

Volume

0.253 Liter

EAN

5702423054503

Actuator

B

Actuator size

13.5 mm

Actuator size [in]

0.53 in

Actuator system [mm]

13.5 mm

Ambient temperature max. [°C]

80 °C

Ambient temperature max. [°F]

176 °F

Application

Open

Approval

SINTEF

Body material

DZR brass

China RoHS compliance

Out of scope

Connection Internal/External

Internal

Connection material

DZR brass

Connection size [in]

3/8

Connection standard

ISO 228-1

Connection type

G

Cv value [gal/min]

0.8 gal/min

Differential pressure [bar] [max]

20 bar

Differential pressure [bar] [min]

0.1 bar

Differential pressure [psi] [max]

290 psi

Differential pressure [psi] [min]

1.45 psi

EEE category

5 small equipment (any external dimension 50 cm)​

Est. time to close, water [ms]

250 ms

Est. time to open, water [ms]

40 ms

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

Flow direction

Single-flow

Flow direction indicator

Embossed 1-way arrow

Fluid Group

1

Function

NC

In scope of WEEE

Yes

In scope of WEEE and contain batteries

No

Kv value [m³/h]

0.7 m³/h

Max media viscosity [cSt]

50 cSt

Max. test pressure [bar]

30 bar

Max. test pressure [psig]

435 psig

Max. Working Pressure [bar]

20 bar

Max. Working Pressure [psig]

290 psig

Media recommendations

Technical & Soft Water

Media tolerance comments

Slightly aggressive media

Medium temperature range [°C] [max]

100 °C

Medium temperature range [°C] [min]

-30 °C

Medium temperature range [°F] [max]

212 °F

Medium temperature range [°F] [min]

-22 °F

Number of ways

2/2

Operation

Servo-operated (diaphragm)

Orifice size [mm]

6 mm

Orifice size fraction [in]

1/4 in

Packing format

Multi pack

Parts Program name

EV220B 6 - 22

Product accessories

Solenoid valve accessories

Product group

Solenoid valves

Product Name Description

Solenoid valve

Quantity per packing format

20 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

f440c2c1-98fa-405b-9256-d9b24590a97e

Seal Material

EPDM

Serviceable

Solenoid valve spare parts

Specification key

EV220B 6BD G 38E NC000

Type

EV220B

Type designation

EV220B 6

UK RoHS compliance

Out of scope
