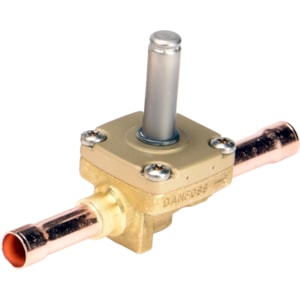

VAN ĐIỆN TỪ DANFOSS EVR 20, Solder, ODF, 7/8 in - C/N 032L5092

Gross weight

1.318 Kilogram

Net weight

0.983 Kilogram

Volume

1.898 Liter

EAN

5702428942430

Actuator system [mm]

13.5 mm

Ambient temperature

-40 - 80 °C

Approval

EAC; UL

Body material

Brass

China RoHS compliance

Yes exceed limitations

Coil

No

Cv value [gal/min]

6.9 gal/min

Direction

Straightway

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(a), 6(c)

Function

NC

Identical product

032L1240

In scope of WEEE and contain batteries

No

Inlet connection type

Solder, ODF

Inlet size [in]

7/8 in

Kv value [m³/h]

6 m³/h

Lubricants compatibility

AB; MO; PAG; PAO; POE; PVE

Manual operation option

No

Max. Working Pressure [bar]

45.2 bar

Max. Working Pressure [psig]

655 psig

MaxOPD[bar] 10W AC

38 bar

MaxOPD[bar] 20W DC

20 bar

MaxOPD[bar] coil BJ/BX

38 bar

MaxOPD[psi] 10W AC

550 psi

MaxOPD[psi] 20W DC

290 psi

MaxOPD[psi] coil BJ/BX

550 psi

Medium temperature range [°C] [max]

105 °C

Medium temperature range [°C] [min]

-40 °C

Medium temperature range [°F] [max]

221 °F

Medium temperature range [°F] [min]

-40 °F

MinODP [bar]

0.03 bar

MinODP [psi]

0.44 psi

MOPD[bar/psi]

Coil Dependend

Orifice size [mm]

22 mm

Outlet connection type

Solder, ODF

Outlet size [in]

7/8 in

Packing format

Industrial pack

Parts Program name

EVR

Product accessories

Solenoid valve accessories

Product group

Solenoid valves

Product Name Description

Solenoid valve

Quantity per packing format

8 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Refrigerants

R1234yf; R1234ze(E)R125; R134a; R152a; R22; R290; R32; R404A; R407A; R407C; R407F; R407H; R410A; R413A; R417A; R422A; R422B; R422D; R438A; R442A; R444B; R447A; R447B; R448A; R449A; R449B; R450A; R452A; R452B; R454A; R454B; R454C; R455A; R463A; R507A; R512A; R513A; R513B; R515A; R515B; R516A; R600; R600a

SCIP dossier no.

29cb9379-b48f-46b9-9360-0837e10ce0bf

SCIP dossier product name

EVR 10-22/EVO 103/EVRC/EVRH 10-20 (NC)

Serviceable

Solenoid valve spare parts

Type

EVR 20

Type designation

Solenoid valve, Solder

UK RoHS compliance

Out of scope

UL approved refrigerants

R125; R134a; R152a; R22; R290; R404A; R407A; R407C; R407F; R407H; R410A; R413A; R417A; R422A; R422B; R422D; R438A; R442A; R447A; R447B; R448A; R449A; R449B; R450A; R452A; R455A; R463A; R507A; R512A; R513A; R513B; R515A; R515B; R516A; R600; R600a

Valve operation

Servo-diaphragm
