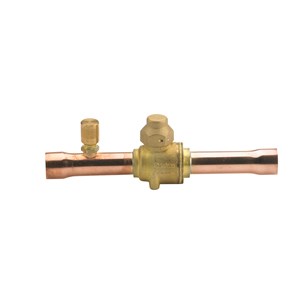

VAN CHẶN DANFOSS GBC 16S - C/N 009L7053
Inlet connection type: SOLDER, ODF, Outlet connection type: SOLDER, ODF, Inlet size [mm]: 16.00, Outlet size [mm]: 16.00, Inlet size [in]: 5/8 in, Outlet size [in]: 5/8 in
Gross weight |
0.31 kg |
Net weight |
0.24 kg |
EAN |
5702428007948 |
Access port |
YES |
Approval |
C UL US LISTED, CE, EAC, UKCA |
Body material |
Brass |
Connection material |
Copper |
Cv value [gal/min] |
18.1 gal/min |
Direction |
Straightway |
Equipment |
Cap w. wire seal |
Flow direction |
Bi-flow |
Flow direction indicator |
Embossed 2-way arrow |
Fluid Group |
1;2 |
Inlet connection type |
SOLDER, ODF |
Inlet size [in] |
5/8 in |
Inlet size [mm] |
16 mm |
Kv value [m³/h] |
15.66 m³/h |
Max. media temp. Oil free [°C] |
80 °C |
Max. test pressure [bar] |
65 bar |
Max. test pressure [psig] |
940 psig |
Max. Working Pressure [bar] |
45 bar |
Max. Working Pressure [psig] |
650 psig |
Medium temp. range note |
100°C-150°C for short term use |
Oil free refrigerants |
R1234ze(E); R134a; R513A; R515B; R516A |
Outlet connection type |
SOLDER, ODF |
Outlet size [in] |
5/8 in |
Outlet size [mm] |
16 mm |
Packing format |
Multi pack |
Panel mounting option |
M4 × 0.7 (2 PC) |
Parts included |
Schrader valve |
PED category |
Art. 4, par. 3 |
Product accessories |
BM/GBC valve accessories |
Product description |
Ball Valve |
Product family name |
GBC v2 |
Product group |
Shut-off and regulating valves |
Product name |
Shut-off ball valve |
Quantity per packing format |
25 pc |
REACH Candidate List substances >0.1% |
Lead (CAS no. 7439-92-1) |
Refrigerants |
R134a |
Serviceable |
BM/GBC valve spare parts |
Temperature range [°C] [Max] |
150 °C |
Temperature range [°C] [Min] |
-40 °C |
Temperature range [°F] [Max] |
300 °F |
Temperature range [°F] [Min] |
-40 °F |
Type |
GBC 16s |
UL approved refrigerants |
R134a |
